Modeling Requirements Modeling Languages: UML and SysML

Electrical circuit diagram with resistors R1–R5, voltage U, current I and I5, and loop currents Is1, Is2, Is3.

When exploring Modeling Languages for Requirements Modeling, choosing the right diagram and language is vital. The decision depends on your system’s complexity and your audience’s needs. Each modeling language highlights different aspects, from structure to behavior. In this article, I explain how to select and apply these tools effectively to ensure your models communicate requirements clearly and support collaboration throughout the development process.

What is Requirements Modeling

Requirements modeling is the process of visually representing a system’s requirements to make them clearer, more structured, and easier to analyze. In requirements engineering, it plays a vital role in bridging the gap between stakeholder needs and technical design. By using models such as diagrams or structured notations, I can illustrate relationships, behaviors, and dependencies. This not only improves communication but also supports validation and consistency across the entire project.

Use case-style diagram with Parent\Teacher and Child actors linked to use cases Maintain Question, Maintain User, Log On, Game and Difficulty.
Use case diagram showing interactions between a parent or teacher, a child and several system functions.

I Choose the Language by Modeling Purpose

Requirements can describe very different aspects of a system. Therefore, one modeling language rarely fits every situation.

I first identify the question I want the model to answer. For example:

  • How does a process flow?
  • How does a system react to events?
  • Which information objects relate to each other?
  • Which actors interact with the system?
  • Which states can the system enter?
  • How do requirements relate to system elements?

The modeling purpose comes first. The modeling language comes second.

This principle prevents me from creating diagrams that look useful but do not support requirements analysis.

Dynamic view diagram with numbered grey boxes (1.1–1.9) connected between Input, Object and Database elements.
Numbered steps in a dynamic view showing data movement between input, objects and databases.

Modeling Embedded and Reactive Systems

Embedded and reactive systems often depend strongly on events, states, and transitions.

Therefore, I frequently use state-based models. State machines help me describe how a system reacts when conditions or events change. They also make missing transitions and unclear behavior easier to detect.

I may combine them with activity or interaction models when I also need to represent flows or communication.

For reactive systems, I focus especially on states, events, conditions, transitions, and interactions.

UML and SysML both provide suitable concepts for these purposes.

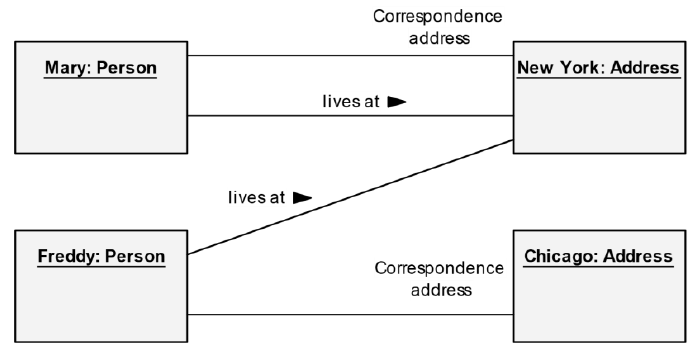

UML relationship example showing associations between three classes in a simple diagram.
Basic UML relationship example used to explain beginner-level modeling concepts.

Modeling Business Information Systems

Business information systems often require a different perspective. Here, I usually focus on processes, responsibilities, information, and user interactions.

For process-oriented requirements, I often use BPMN. It helps me model activities, decisions, events, participants, and message flows.

However, BPMN does not describe every relevant aspect of a system. Therefore, I may use UML class diagrams to model important information structures or state machines to represent the lifecycle of business objects.

As a result, I often combine different views instead of forcing every requirement into one notation.

Diagram labeled “frame” with several rounded rectangles labeled “Activity,” connected by red arrows, plus a smaller boxed section labeled “Container.”
Activity-style flow inside a frame, with an embedded container section.

UML in Requirements Modeling

UML gives me several diagram types for structure and behavior.

For example, I can use:

  • use case diagrams for interactions between actors and systems,
  • activity diagrams for behavior and flows,
  • state machine diagrams for state-dependent behavior,
  • sequence diagrams for interactions over time,
  • class diagrams for relevant information structures.

However, UML does not automatically turn a diagram into a requirements model.

I still need to keep the model at the right level of abstraction. A conceptual class model may support requirements analysis. In contrast, a detailed software class design may already belong to system design.

I use UML when its structural or behavioral views help me answer a specific requirements question.

UML sequence diagram with two objects exchanging dispatch, callback and return messages.
Simple sequence diagram showing dispatch, callback and return between two objects.

SysML in Requirements Modeling

SysML supports systems engineering across requirements, structure, behavior, analysis, and verification.

I distinguish between SysML v1 and SysML v2. SysML v1 developed from UML concepts. SysML v2 uses a new foundation and integrates graphical and textual modeling more directly.

For requirements engineering, SysML becomes especially valuable when I need to connect requirements with system elements, behavior, constraints, and verification activities.

Therefore, I can model not only individual requirements but also their relationships to the wider system.

SysML is particularly useful when requirements form part of an integrated system model.

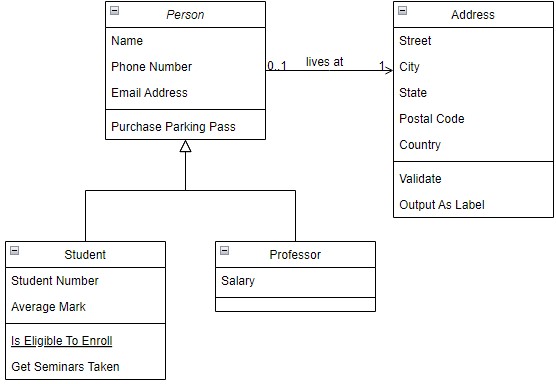

Class diagram with boxes for Person, Address, Student and Professor, attributes such as name, phone number and street, and a relationship labeled “lives at”.
Example domain model diagram showing people, addresses, students and professors for explaining context and information structures.

BPMN for Process Requirements

I use BPMN when the business process itself forms the main subject of analysis.

BPMN lets me show process starts, activities, decisions, events, participants, communication, and alternative paths.

Therefore, it works well for requirements that depend on workflow logic or collaboration between participants.

However, BPMN specializes in processes. I do not use it as a replacement for structural, state-based, or systems engineering models.

BPMN fits best when I need to understand or specify process behavior.

Specialized Modeling Languages

UML, SysML, and BPMN do not cover every domain equally well.

Technical and embedded systems may benefit from specialized languages and engineering environments. These can express control logic, data flow, physical behavior, or simulation models more directly.

However, specialization creates trade-offs. A notation may express the domain precisely while fewer stakeholders understand it.

Therefore, I balance technical precision against accessibility and maintainability.

The Audience Matters

A model only creates value if its intended users can understand it.

Business stakeholders, developers, systems engineers, and testers often need different perspectives. Therefore, I adjust the model and level of detail to the audience.

At the same time, I avoid creating several independent models that repeat the same information. Otherwise, contradictions can emerge when requirements change.

A good requirements model contains the information its audience needs without unnecessary complexity.

How I Choose a Modeling Language

My selection follows a simple logic.

First, I identify the modeling question. Next, I determine whether I need to describe process, behavior, structure, interaction, state, or information.

Then, I consider the system domain and the audience.

Finally, I choose the simplest notation that represents the required information precisely.

Therefore, I do not ask whether UML, SysML, or BPMN is generally better. Instead, I ask which language fits the problem.

Conclusion

Modeling Languages for Requirements Modeling serve different purposes.

I use UML for suitable structural and behavioral views. I use SysML when requirements need strong connections to the wider system model. I use BPMN for process-oriented requirements. In addition, I use specialized languages when a domain requires more specific concepts.

The best modeling language is the one that represents the required perspective clearly, precisely, and with no more complexity than necessary.

What’s Next?!

Now that you understand how requirements modeling shapes clarity and structure in system design, it’s time to dive deeper into object-oriented thinking. Understanding what objects are and how they define real-world elements in software will take your modeling skills to the next level. In my next article, Object-Oriented Thinking: What Are Objects?, I explain how objects form the foundation of modern software systems. Click ahead to start thinking in objects!

Explore the Full World of Requirements Modeling

If I want to understand systems clearly, I need more than isolated requirement statements. I need models that make structure, behavior, and relationships visible. In the main article on Requirements Modeling, I bring these perspectives together and show how modeling concepts build the foundation for better analysis. I also connect this foundation with Process Modeling through BPMN and with system structure through UML. As a result, the article helps me see how different modeling approaches support clearer communication, stronger documentation, and better system design.


This article covers concepts that are also included in the CPRE certification syllabus.
