In my experience as a tech blogger, modeling relationships in UML can seem intimidating. But here’s the truth: it doesn’t have to be complicated. In this blog, I’ll break down how simple UML modeling relationships work, share some examples, and help you understand why they are crucial. You’ll see how simple it is to get started. So, let’s dive in!
Why Relationships Matter
First things first, why should you care about modeling relationships? Well, a key component of an information model are the relationships. Without them, the model would lack structure and meaning. Relationships show how the objects of different classes interact with each other. They are represented as connections between classes. In my opinion, understanding these connections can make or break your model. Relationships tell us how objects, or instances of classes, are connected and interact.
Simple Relationships (Binary Associations)
To start, let’s talk about simple relationships, also known as binary associations. These relationships are drawn between two classes. They describe how two objects relate to each other. For instance, think about a Person
class and an Address
class. A person can have an address where they live and another address for correspondence. So, we have two different objects – Person
and Address
– and a simple relationship connecting them. But, we could also have a situation where objects from the same class are related. In that case, simple relationships still apply. It’s straightforward, right? Simple relationships keep things easy to understand.
Now, here’s a little secret: while UML also supports more complex relationships involving multiple objects, these n-ary relationships are beyond the scope of what we’re covering here. For simplicity’s sake, we will stick to binary associations.
How to Represent Binary Associations

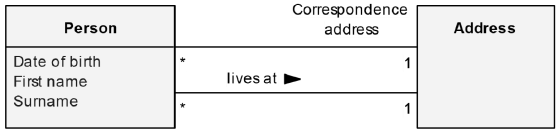

Representing binary associations is quite simple. Take e. g.: two classes, say Person
and Address
, connected by a line:

That line is the relationship. But it’s not just a plain line; there’s more to it. To give this line meaning, we add some additional information. Here’s what you need:
- Name: The name of the association. This usually is a verb phrase that captures the meaning of the relationship. For example, “lives at” or “sends mail to.”
- Reading Direction: The direction in which you read the name of the association. It clarifies which class is associated with which.
- Multiplicity: This tells you how many instances of one class relate to instances of another class. For example, a person might have one residence address and multiple correspondence addresses.
- Role: The role indicates what part each class plays in the relationship. For instance, a person might be a “resident,” and the address might be a “residence.”

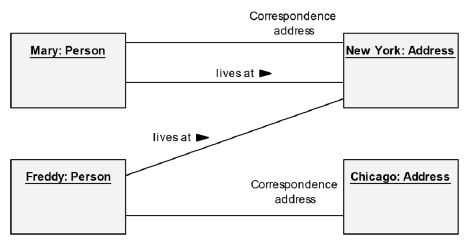

Here’s a tip: When figuring out the multiplicity of a relationship, imagine the objects and think about how they relate in real life. This can clarify how many objects are involved and ensure accuracy.
Why Associations Matter in Requirements
When I think about how associations are useful, one word comes to mind: clarity. Associations bring clarity to requirements. Let me give you an example. Imagine a requirement that states: “Show address.” This requirement only mentions one object, the address. But what if we say, “Show the correspondence address of the person who is the contact for the company”?
Now, we have context. We know we are interested in a specific address, not just any address. Associations help us zoom in and focus on the relevant objects.
Multiplicity: The Unsung Hero
Now, let’s talk about multiplicity. Multiplicity is crucial for requirements engineering. It helps us verify the details of our requirements. For example, if a requirement suggests that each Person
lives ar exactly one Address
, but the model shows that a Person
can have differing correspondence Addresses
, we need to adjust either the requirement or the model.

Conclusion
In conclusion, simple UML modeling relationships are the building blocks of effective information modeling. They help define how different objects interact, provide clarity, and ensure that requirements are precise. By focusing on simple relationships, we keep our models understandable and functional.
I hope this journey through simple UML modeling relationships has been as enlightening for you as it has been for me!
